150mm SmartStack^® Horizontal Wafer Shippers

Horizontal Wafer Shipper

Secondary Packaging

Single Unit Kit

Horizontal Wafer Shipper

Material: STAT-PRO^® 100M
Color: Black
Packaged, double bagged, heat sealed
Sold in full case quantity (24 pcs)
Automation compatible

Product Literature - English (Available to logged in users)
Product Literature - Japanese (Available to logged in users)

Part Number	Description	FCA	Available Inventory	MOQ	Unit Price*	Order Quantity

HWS150-101-61C02M	SmartStack^® Horizontal Wafer Shipper 150mm (6") wafers	--	--	24	--

Inner Cushion

Amine free cushions
Packaged, double bagged, heat sealed
Sold in full bag quantity (100 pcs)

Product Literature - English (Available to logged in users)
Product Literature - Japanese (Available to logged in users)

Part Number	Description	FCA	Available Inventory	MOQ	Unit Price*	Order Quantity

HWS150-100-CCPF	Pink Inner Cushion 150mm (6") dia.x 3.00mm (0.118") thick Material: Closed cell polyethylene, anti-static	--	--	100	--

Wafer Insert

ESD
Clean room packaged
Non-woven polyethylene insert cleaned with proprietary two-step process
Sold in full case quantity (See MOQ below)

Single Layer Inserts Product Literature - English (Available to logged in users)
Multilayer Insert Product Literature - English (Available to logged in users)
Multilayer Insert Product Literature - Japanese (Available to logged in users)

Part Number	Description	FCA	Available Inventory	MOQ	Unit Price*	Order Quantity

HWS150-5TY500-INS	Single Layer Non-woven Polyethylene Wafer Insert 150mm (6") dia. x 0.127mm (0.005") thick Packaged in class 100 clean room Material / color: Non-woven polyethylene / white	--	--	500	--

HWS150-3LR500-INS	Multilayer Non-woven Polyethylene Vacuum-Pickable Insert 150mm (6") dia. x 0.25mm (0.010") thick Packaged in class 100 clean room Material/Color: Non-woven polyethylene / white	--	--	250	--

Secondary Packaging

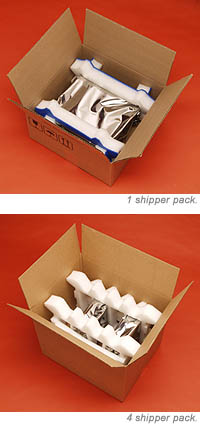

Secondary packaging consists of:

Corrugated shipping boxes
Outer packing cushions (see note in description for qty used)
ESD Bag

Products sold separately

Product Literature - English (Available to logged in users)

Part Number	Description	FCA	Available Inventory	MOQ	Unit Price*	Order Quantity

HWS-ESD-BAG	ESD Bag, 200mm/150mm HWS Material: Polyethylene, 3.5 mil thick Sold in full case quantity (100 pcs)	--	--	100	--

HWS-1PK-KIT-BOX	Corrugated Shipping Box, 200mm/150mm HWS - 1 shipper Sold in full bundle quantity (10 pcs)	--	--	10	--

HWS-2PK-KIT-BOX	Corrugated Shipping Box, 200mm/150mm HWS - 2 shippers Sold in full bundle quantity (10 pcs)	--	--	10	--

01-006791	Corrugated Shipping Box, 200mm/150mm HWS - 4 shippers Sold in full bundle quantity (10 pcs)	--	--	20	--

HWS-KIT-CUSH	Outer Packing Cushion, 200mm/150mm HWS - 1 shipper Use one cushion per single-unit shipping box Material: Laminated polyethylene Sold in full case quantity (50 pcs)	--	--	50	--

HWS-2PK-KIT-CUSH	Outer Packing Cushion, 200mm/150mm HWS - 2 shippers Use two cushions per two-unit shipping box Material: Laminated polyethylene Sold in full case quantity (50 pcs)	--	--	50	--

01-006792	Outer Packing Cushion, 200mm/150mm HWS - 4 shippers Use two cushions per four-unit shipping box Material: Laminated polyethylene Sold in full case quantity (84 pcs)	--	--	84	--

Single Unit Kit

Kit consists of:

(1) 150mm HWS
(13) Pink inner cushions
(26) Non-woven polyethylene wafer inserts
(1) Corrugated Shipping Box
(2) Outer packing cushions
(1) ESD Bag

Product Literature - English (Available to logged in users)

Part Number	Description	FCA	Available Inventory	MOQ	Unit Price*	Order Quantity

HWS150-1PACK-KIT	Horizontal Wafer Shipper Kit 150mm (6") wafers Ships 1-25 wafers Sold in full case quantity (8 pcs)	--	--	8	--

NOTE
*	Note: Prices are FCA point of manufacture and do not include shipping costs, taxes, duties, etc. European customers please contact your local Customer Service Center for price requests.
	Packing Calculator for 150mm and 200mm Wafers Use our on-line Packing Calculator to ensure the proper configuration and use of inner cushions and inserts to maintain wafer integrity during transport, storage and shipping.
